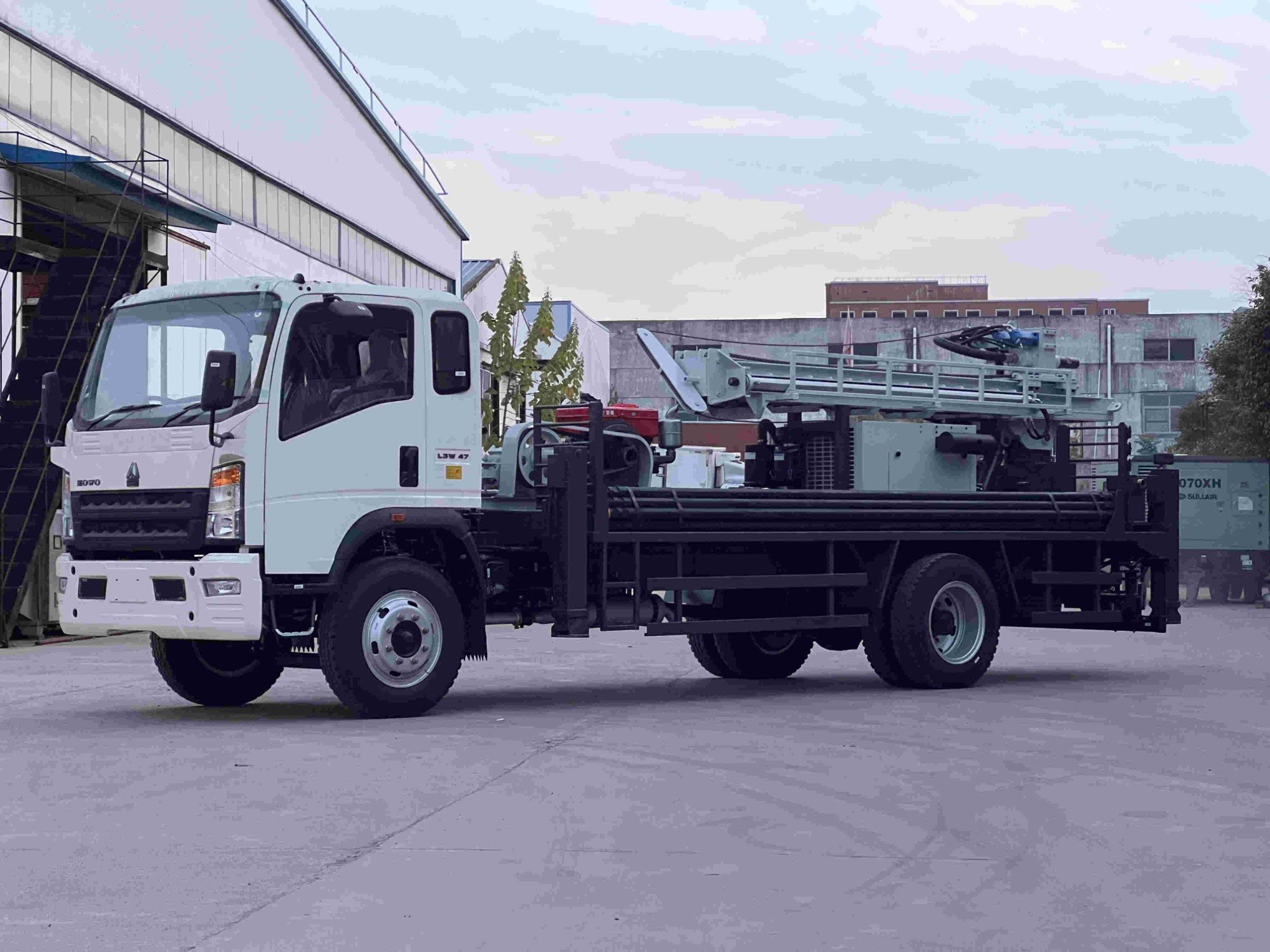

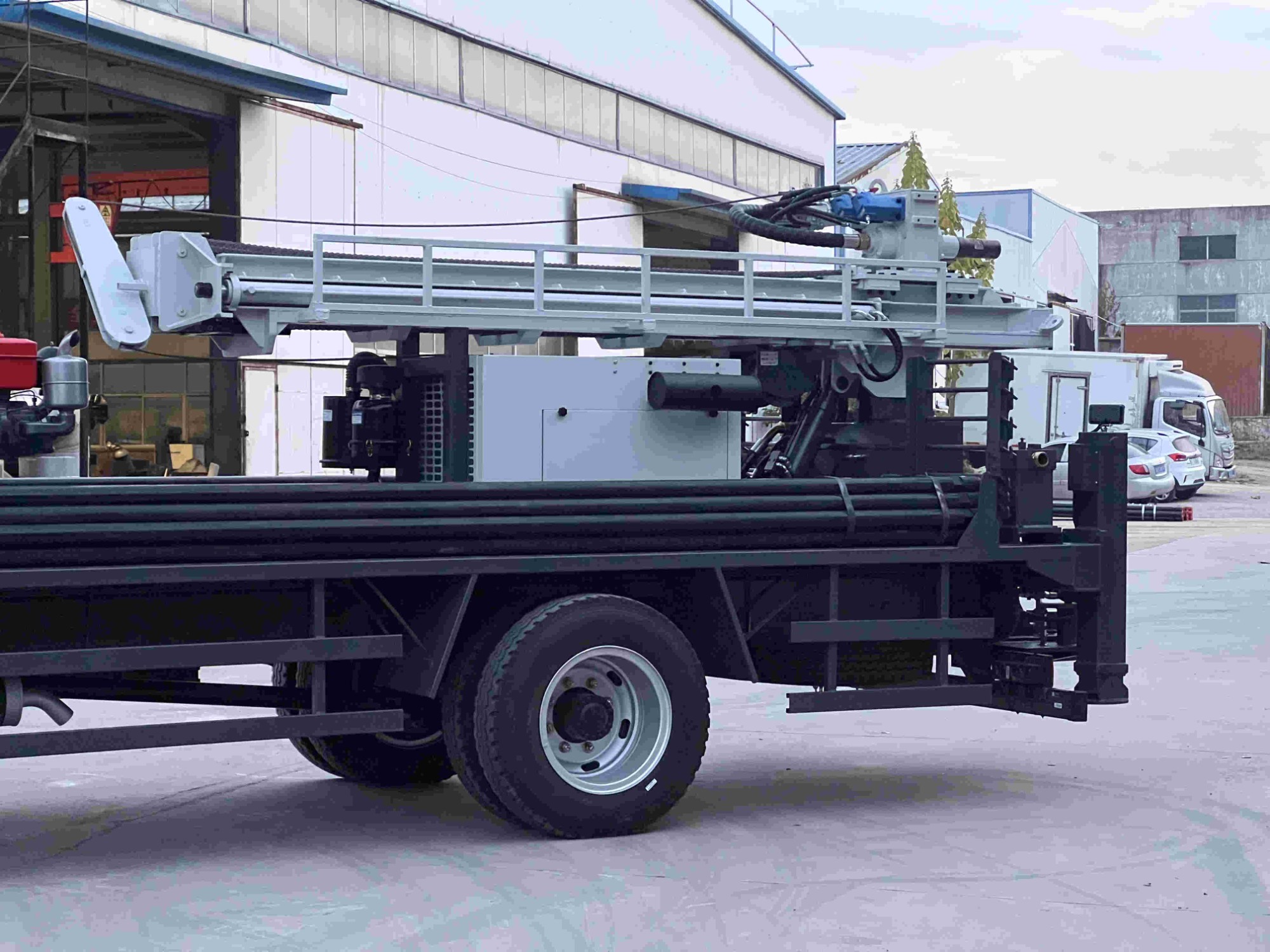

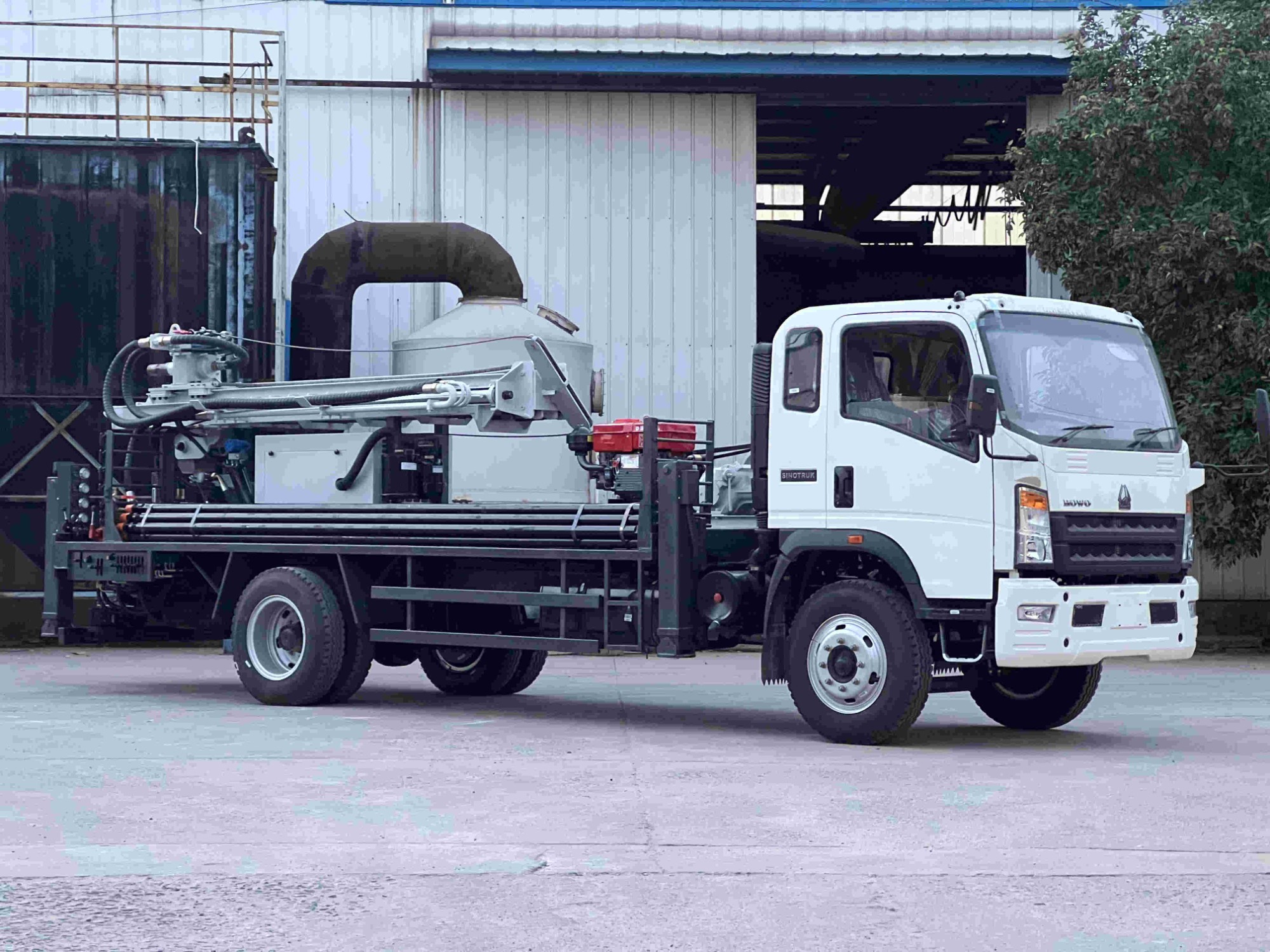

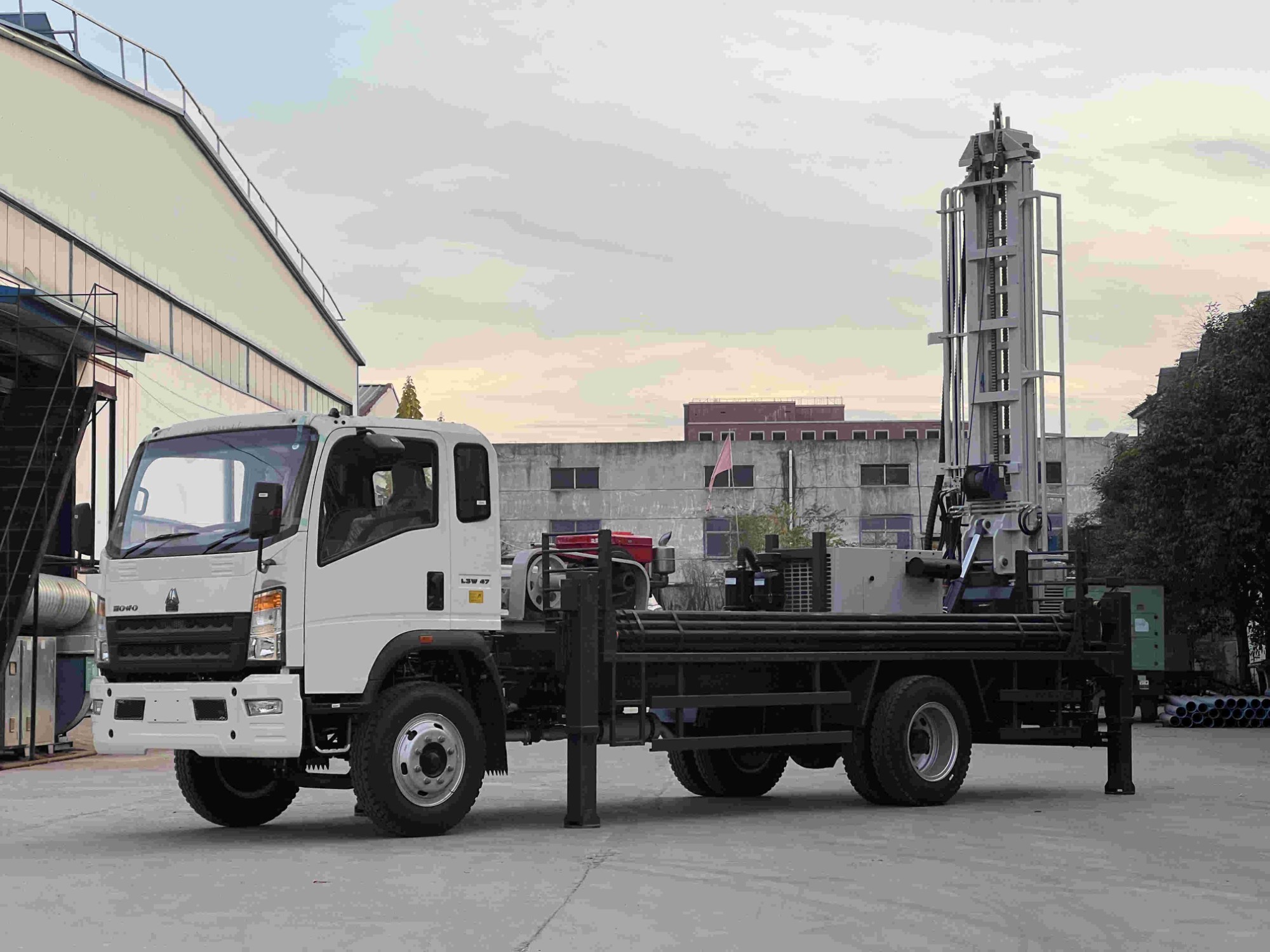

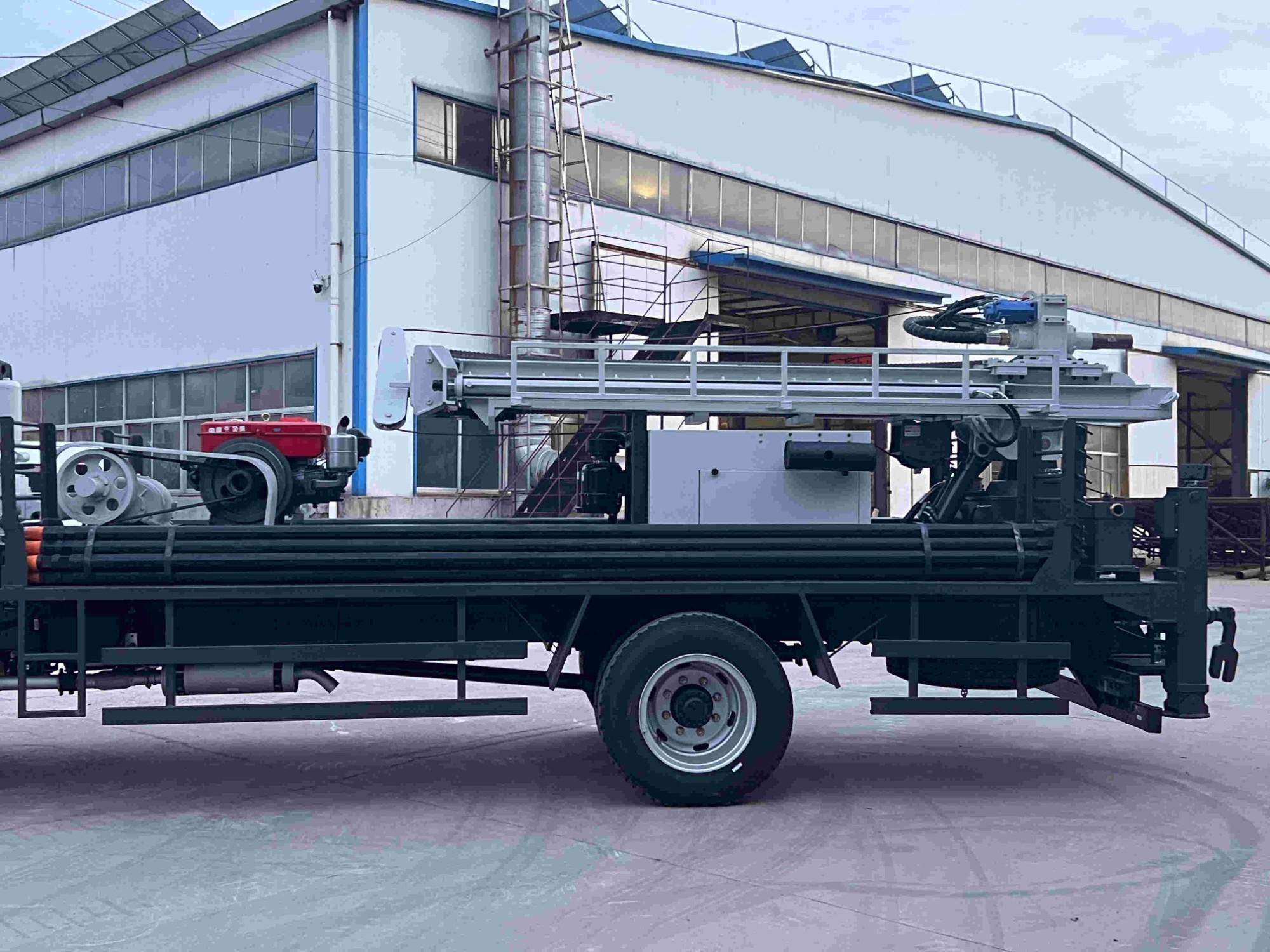

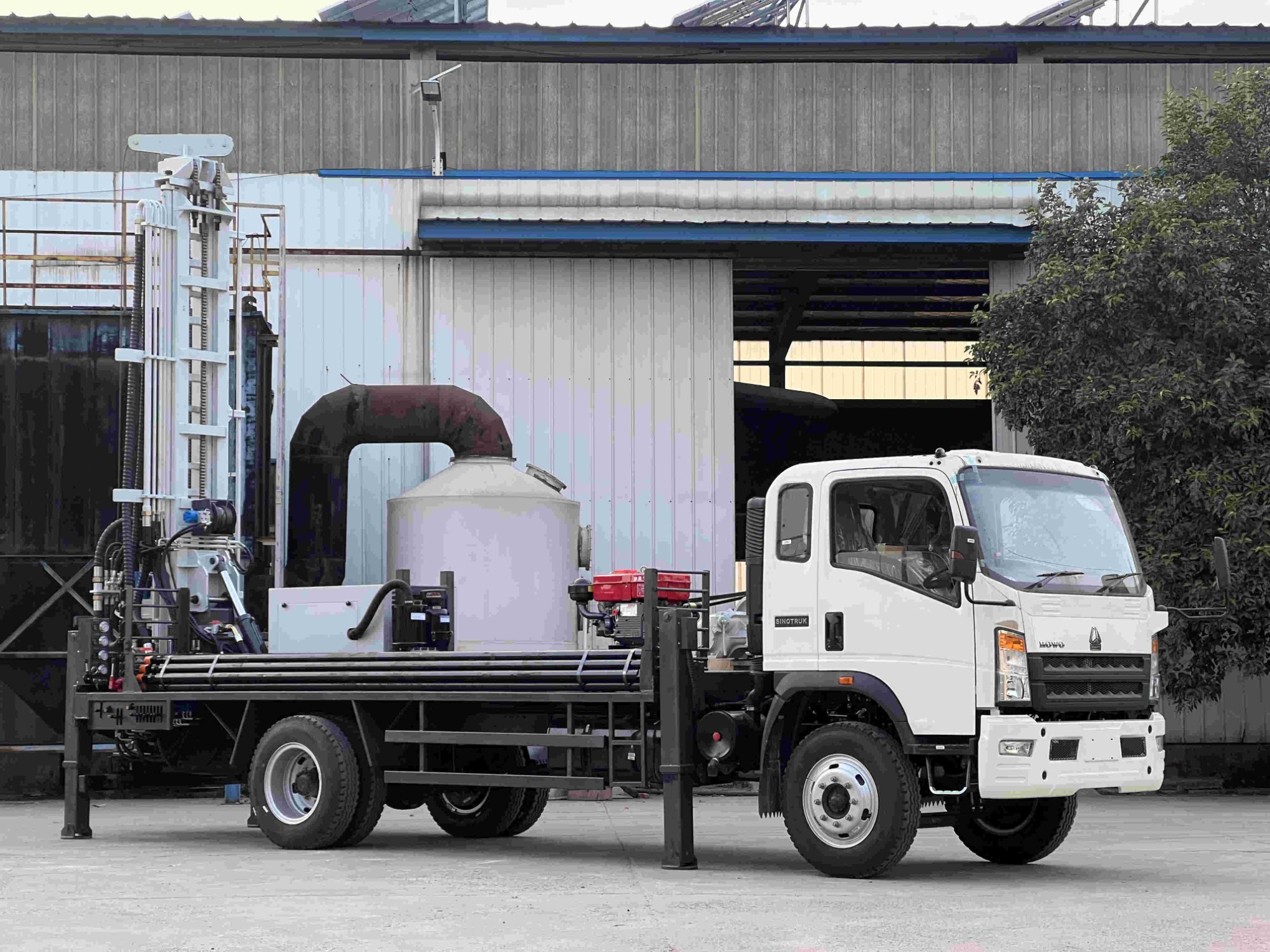

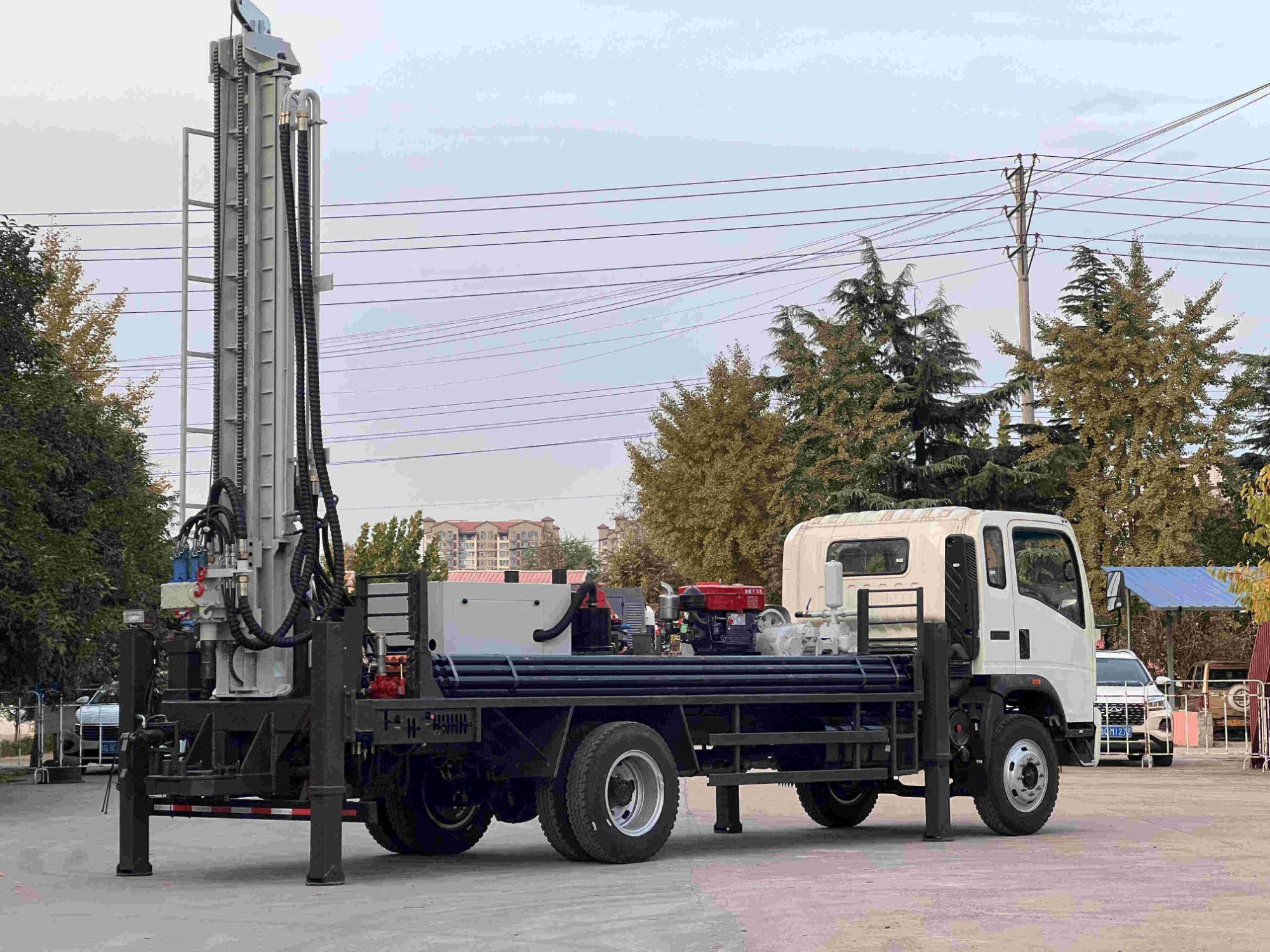

100m -300m 4x2 4x4 Truck Mounted Borehole Rig

1)Equipped with a fully diesel turbocharged engine, powerful power
2)Patent design for dual oil cylinder lifting composite boom
3)Can select dual systems, aerodynamic system with air compressor, mud drilling system with mud pump
4)Howo or Dongfeng truck head

EMAIL

TKC150 TKC200 TKC300 Truck Mounted Water Well Borehole Drilling Rig

The Weight(T)

9

Drill Pipe Diameter(mm)

φ76 φ89 φ102

The Hole Diameter(mm)

140-350mm

Drill Pipe Length(m)

 3.0m 4.5m 5m 6.0m

Drilling Depth(m)

300

Rig Lifting Force(T)

13

One-time Advance Length(m)

3-6

Rapid Rise Speed(m/min)

18

Walking Speed (Km/h)

80

Fast Feeding Speed(m/min)

33

Climbing Angles (Max.)

30

Swing Speed(rpm)

45-120

Hoisting Force Of Winch(T)

2

Steering Wheel

Left or Right

Woking Air Pressure (MPA)

2.5

Swing Torque (N.m)

6200-8500

Air Consumption(m³/min)

31

High Leg Stroke(m)

1.4

The Penetration Efficiency(m/h)



15-35

Mud Pump Type

BW250



Engine Power (Kw)



58-85

Air Compressor Power

 Xichai Cummins


Drive Form

4x2 and 4x4

Tire Specification

10R20

Vehicle Brand

HOWO or DONGFENG

Dimension(mm)

10000x2500x2650
