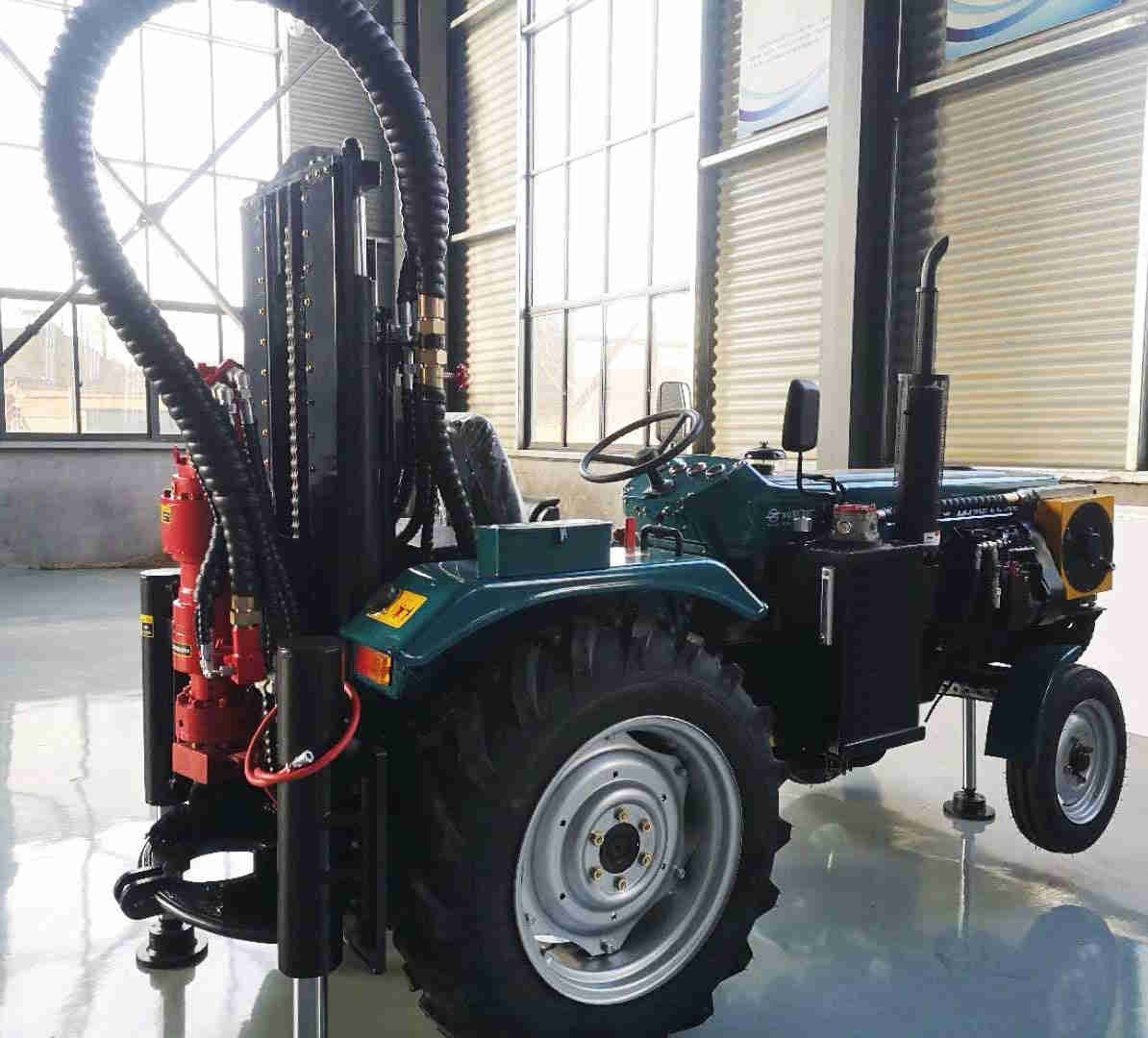

TKM200 Tractor Mounted Water Well Drilling Rig

200mTractor Mounted Water Well Drilling Rig

EMAIL

TKM200   Tractor Mounted Water Well Drilling Rig

The   Weight(T)

  3.5

Drill Pipe Diameter(mm)

φ76   φ89

The   Hole Diameter(mm)

130-254

Drill Pipe Length(m)

1.5m

Drilling   Depth(m)

200

Rig Lifting Force(T)

12

One-time   Advance Length(m)

1.5

Rapid Rise Speed(m/min)

20

Walking   Speed (Km/h)

20-40

Fast Feeding Speed(m/min)

40

Climbing Angles (Max.)

30

Swing Speed(rpm)

40-60

Diesel   Engine (HP)

40

Hoisting Force Of Winch(T)


Woking   Air Pressure (MPA)

1.7-2.5

Swing Torque (N.m)

4000-4700

Air   Consumption(m³/min)

17-31

Dimension(mm)

3900X1600X2600

The   Penetration Efficiency(m/h)

15-35

High Leg Stroke(m)

1.4



 Tractor   Brand

 Changli 400
